Performance Lab Plugin Image Tests Results

See test results comparing images created with standard JPEG, MozJPEG, and then WebP images that were generated on upload using the new WordPress Performance Lab plugin.

My Recommendation

These tests prove to me that it is a bad idea to role this plugin’s image functions into WP core at this time.

Initial Setup

Following are details on the setup I used for these tests.

• Fresh WordPress 5.9.1 install
• Shared hosting with Litespeed server
• No other site/hosting optimization
• Default TwentyTwentyTwo theme

Media Settings

Following are the defaults in Settings > Media:

• Thumbnail size – 150×150
• Medium size – 300×300
• Large size – 1024×1024

Images Created

Since the Large size in WP Media settings is 1024, that was chosen as the width for the test image so that it could display properly as full size and the original would be used, not a thumbnail.

Below is a sample of the base image used for all tests:

The following images were created from the original:

• baseline-jpg-1024×724.jpg – no optimization prior to upload
• wpperf-jpg-1024×724.jpg – same as above, no optimization prior to upload
• moz-jpg-1024×724.jpg – same as above, optimized using Squoosh and saved as MozJPEG with these default settings

Online Testers Used

I chose to use online testers that anyone can easily have access to so they can replicate these tests.

WebPage Test

Used for desktop testing with these settings:

GTMetrix Mobile

I have the paid version of GTMetrix so that I can run mobile tests on it from a variety of locations and with a variety of settings.

These settings were used:

Google PageSpeed Insights

GPSI uses:

• A Moto phone – 4x slower than an iPhone
• Fast 3G connection – 2x slower than home wifi
• Fixed testing location – caches the test if same URL used repeatedly

I did not waste my time running this tester and here’s why:

• It’s not a real-world test for U.S. based site owners who cater to a U.S. based audience – and these make up the majority of my clients.
• It has nothing to do with the information reported to Google/Chrome about your site.
• It does not give the most detailed, accurate, or actionable information.

Baseline Tests

Following are the details of my baseline tests.

File Sizes of Uploaded Baseline Image

The baseline-jpg-1024×724.jpg image was uploaded directly to the Media Library.

Following are the images created by WordPress along with their file sizes as shown in the wp-content > uploads folder:

Order of Embedded Images

A new page was created and each size image was embedded in this order:

• Full Size – 1024×724
• Medium – 300×212
• Thumbnail – 150×150
• Full Size set to 75% – 768×543 – this is the only way to make this size thumbnail appear.

In other words, the original 1024×724 image was selected each time and the Image Block settings were changed to invoke the corresponding thumbnail image.

It’s important that the original, Full size image is the first to be embedded as it will display in the viewport (on the screen, above the fold). This avoids browser lazy load being applied to it.

This order was used for all tests.

Baseline Online Tester Results

Following are partial screenshots of my tests.

WebPage Test Baseline Results

Test results page: https://www.webpagetest.org/result/220403_BiDcEM_112/
NOTE: These tests are only held for a few months.

Median Run Speed Summary

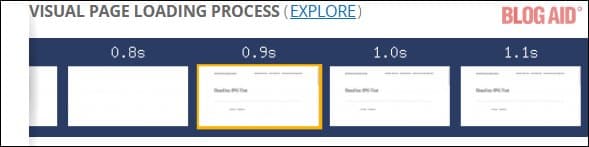

Visual load start render and full render segments

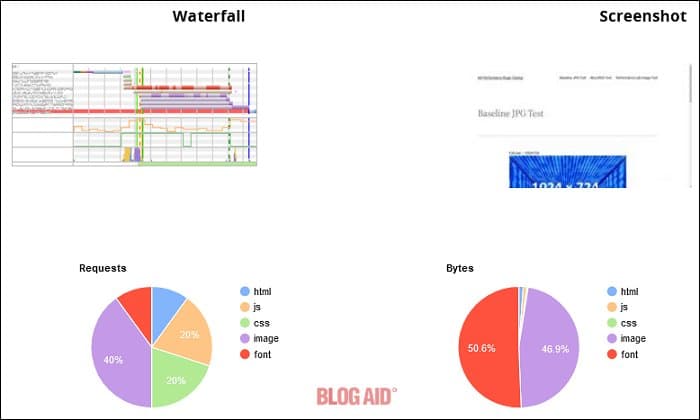

Median run summary

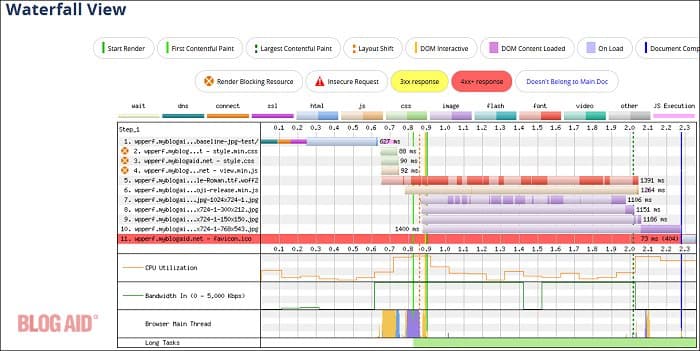

Waterfall

As you can see, the native font (long orange line) takes forever to load and the favicon is missing (red highlighted line). These are two issues I hope WP will address in this default theme to help with performance.

I chose to leave them as is so that everyone can replicate my out-of-the-box setup.

But, that also means that we have to ignore the fully loaded time in the results. And the font load impacts the start time of the images loading as well.

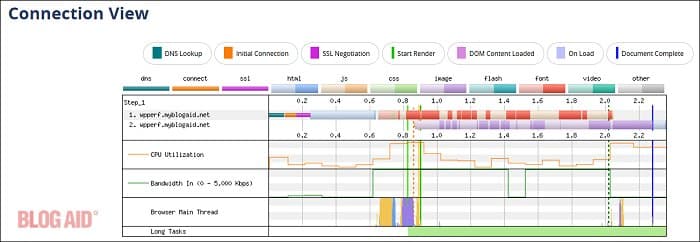

Third-Party Connections

This Connection View remains the same throughout all tests and will only be shown once here, just to prove there are no external factors impacting the load.

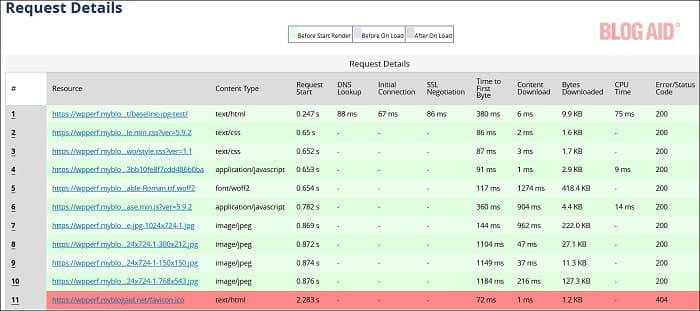

Request Details

Request Headers

Request 1: https://wpperf.myblogaid.net/baseline-jpg-test/

Request 2: https://wpperf.myblogaid.net/wp-includes/blocks/navigation/style.min.css?ver=5.9.2

Request 3: https://wpperf.myblogaid.net/wp-content/themes/twentytwentytwo/style.css?ver=1.1

Request 4: https://wpperf.myblogaid.net/wp-includes/blocks/navigation/view.min.js?ver=3776ea67846b3bb10fe8f7cdd486b0ba

Request 5: https://wpperf.myblogaid.net/wp-content/themes/twentytwentytwo/assets/fonts/SourceSerif4Variable-Roman.ttf.woff2

Request 6: https://wpperf.myblogaid.net/wp-includes/js/wp-emoji-release.min.js?ver=5.9.2

Request 7: https://wpperf.myblogaid.net/wp-content/uploads/2022/04/baseline-jpg-1024×724-1.jpg

Request 8: https://wpperf.myblogaid.net/wp-content/uploads/2022/04/baseline-jpg-1024×724-1-300×212.jpg

Request 9: https://wpperf.myblogaid.net/wp-content/uploads/2022/04/baseline-jpg-1024×724-1-768×543.jpg

Request 10: https://wpperf.myblogaid.net/favicon.ico

Images

(Partial screenshots on large images)

Large image

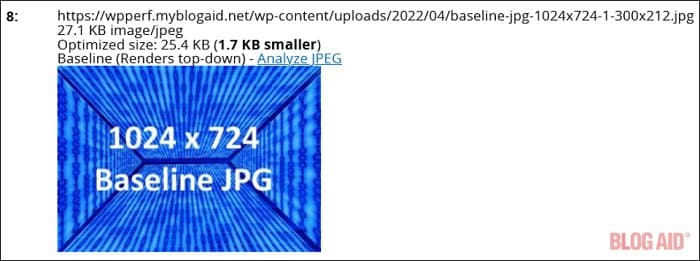

Medium image

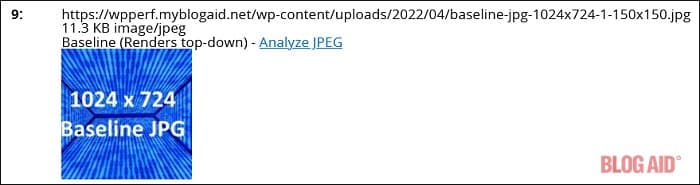

Thumbnail image

Large image at 75%

As you can see, all of the images are showing that they could be optimized more.

Except for the first one, they are all rendering Baseline, which is slower than Progressive render.

Plus, none of them are in a modern file format, which is something that Chrome/Google would prefer you use.

GTMetrix Mobile Baseline Test Results

Test results https://gtmetrix.com/reports/wpperf.myblogaid.net/ndtereWR/

NOTE: These tests are only held for a few months.

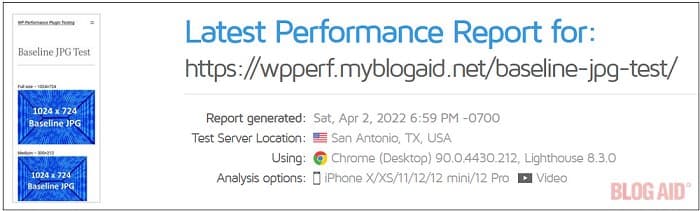

Mobile load screenshot

Test summary

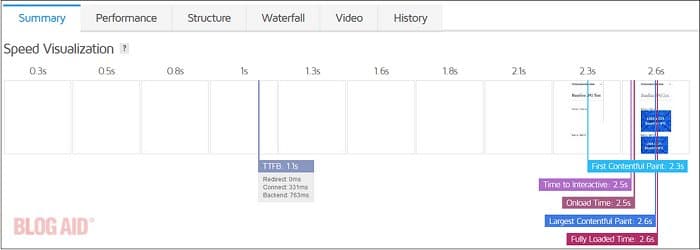

Speed visualization

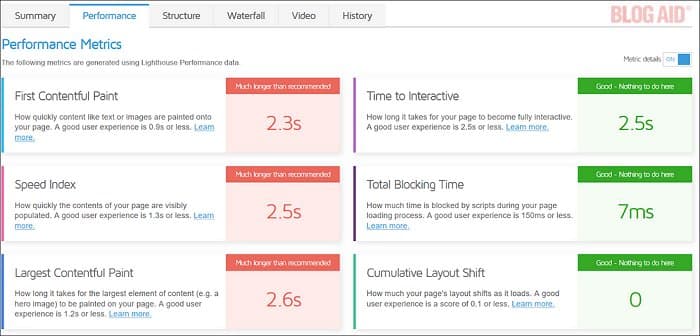

Performance metrics

Waterfall

MozJPEG Tests

The original image was saved as MozJPEG with the default settings  in Squoosh and was uploaded directly to the Media Library.

File Sizes of Uploaded MozJPEG Image

Following are the images created by WP, including their file size, as shown in wp-content > uploads:

A new page was created and the images were embedded in the same order as the Baseline page.

MozJPEG Online Tester Results

This page https://wpperf.myblogaid.net/mozjpeg-test/

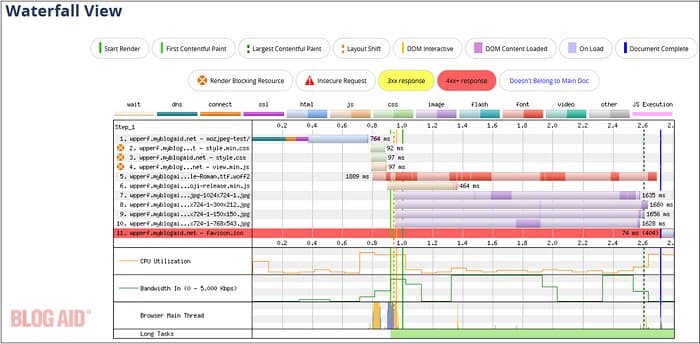

WebPage Test MozJPEG Results

Test results page: https://www.webpagetest.org/result/220403_AiDc6G_80D/

NOTE: These tests are only held for a few months.

NOTE: Only the most important stat screenshots will be shown for the rest of this post. The full case study is available to Webmaster Training members.

Images

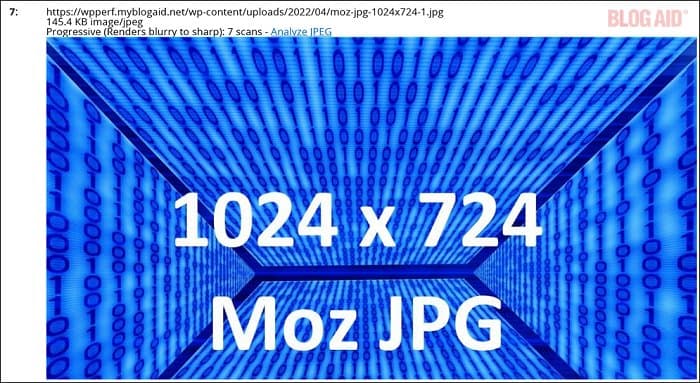

Large image

NOTE: Progressive render on the full size image.

Medium image

NOTE: Baseline render on the thumbnails.

Thumbnail

Large at 75%

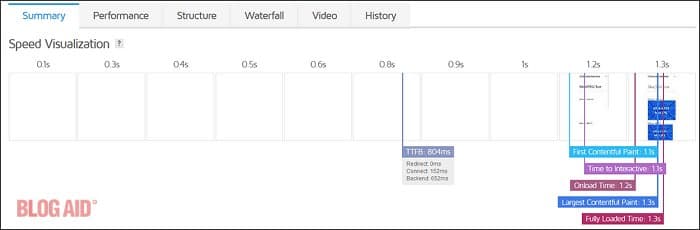

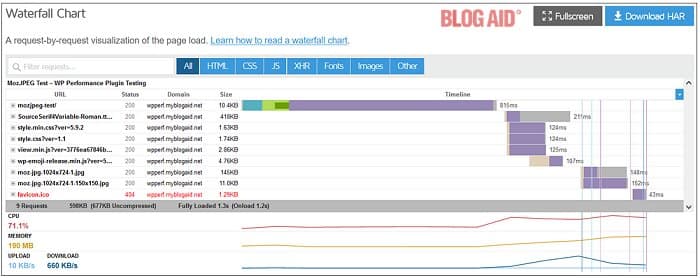

GTMetrix Mobile MozJPEG Results

Test results page: https://gtmetrix.com/reports/wpperf.myblogaid.net/bHFXR2tw/

NOTE: These tests are only held for a few months.

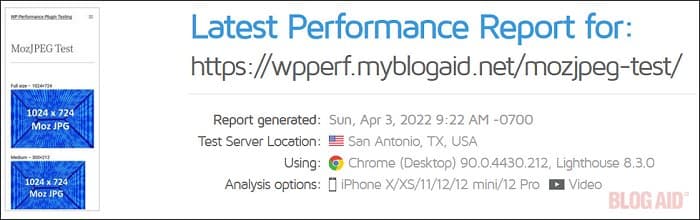

Mobile load screenshot

Performance Lab Tests

The Performance Lab plugin version 1.0.0-beta.3  was installed and configured with these settings:

File Sizes of Uploaded Images

Following are the images created by WP, including their file size, as shown in wp-content > uploads:

A new page was created and the images were embedded in the same order as the Baseline page.

Performance Lab Online Tester Results

WebPage Test Performance Lab Results

Test results page: https://www.webpagetest.org/result/220403_BiDcN1_7XF/

NOTE: These tests are only held for a few months.

Images

Large

Medium

Thumbnail

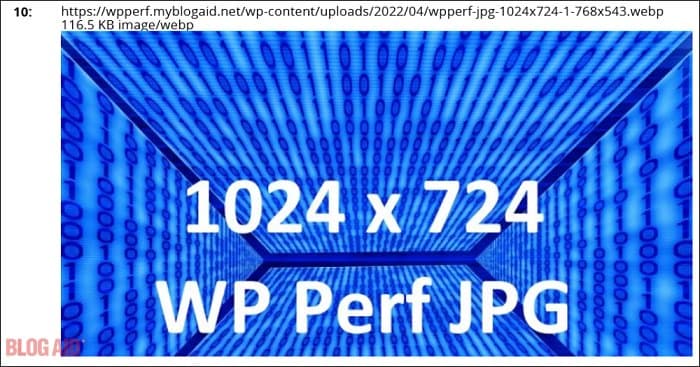

Large at 75%

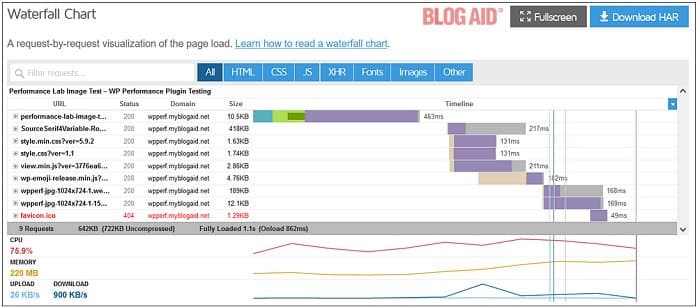

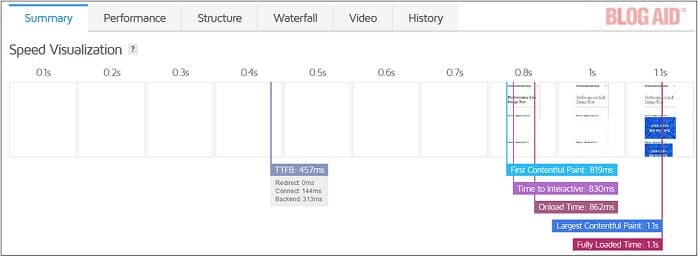

GTMetrix Mobile Performance Lab Results

Test results page: https://gtmetrix.com/reports/wpperf.myblogaid.net/31cobvA3/

NOTE: These tests are only held for a few months.

Test Conclusion

Following is a summary of the tests.

Chart of Images Stored on Disk

The JPEG filename in the first column is for the baseline image and all of the thumbnails created. But the columns show each version’s file size for that equivalent image.

And below that are the original image sizes after upload, meaning the full size image.

Converting to WebP images gives an overall savings of 42.64 KB, even though some thumbnails are actually bigger than the original, unoptimized image.

However, the MozJPEG version gives an overall savings of 84.15 KB and the original plus all thumbnails are smaller than the original, unoptimized image.

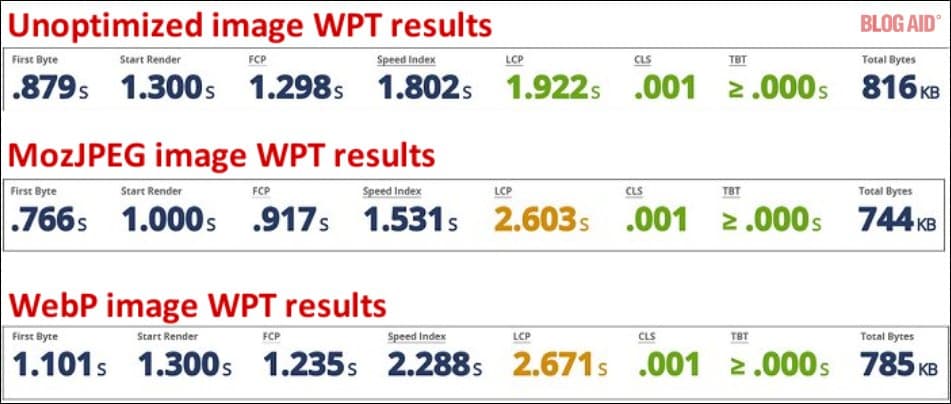

Speed Comparison

Even with losing the progressive render and modern file format of MozJEG on the thumbnails, it still outperformed the Performance Lab plugin in all respects, including:

• Load time
• Reduced file size
• Reduced number of files
• Reduced inodes

The MozJPEG extension is .jpg, is:

• supported in every browser and platform
• Requires no fallback image
• can be used in any 3rd party application such as RSS and email

I am not advocating that everyone use MozJPEG. It is just one example of a modern file format that works better than WebP.

Plus, newer image file formats with even better compression algorithms are on the way and we would not want to get locked into what will eventually become an older standard.
